PRODUCT

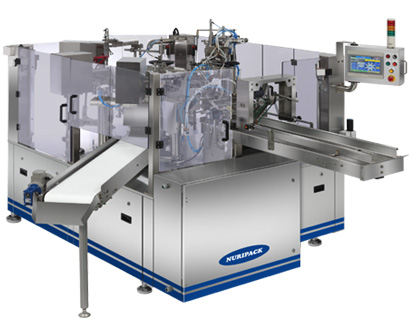

Automatic pouch packer

Overview
  • Fully automatic packaging machine as the process of Empty pouch feeding - Pouch open - Product fill- Pouch seal - Pouch discharging
  • Easy operation with color graphic touch screen (HMI)
  • Easy pouch size change via touch screen (HMI) within 5 minutes
  • Exact performance with durable mechanical CAM
  • Washdown design for quick cleaning
  • Good quality and durability as Global standard parts application

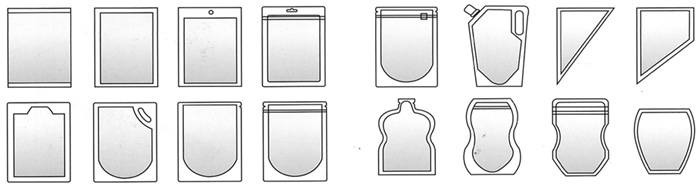

Available pouch pattern (Preformed, Premade)
  • Flat pouch, Standup pouch, Zipper pouch, Corner spout pouch, Shaped pouch


Available product
  • Powder - Wheat flour, Sugar, Cream powder, Cocoa powder, Milk powder, Ground pepper, Ground coffee etc.
  • Granule - Seasoning,Sugar,Biscuit, Cereal, Fertilizer, Grain, Nuts, Coffee beans etc
  • Liquid - Juice, Oil, Cosmetic, Detergent, Maskpack oil..etc
  • Paste - Sauce, Cosmetic,Shampoo..etc
Model
Model
MODEL NR-6S32 NR-8S24 NR-8S30 NR-8S35 NR-9S24
STATIONS 6(Simplex) 8(Simplex) 9(Simplex)
SPEED(RPM) 30~50 30~50 30~50 20~30 30~50
Depends on pouch and product condition
Gripping Size(mm) 160~320 100~240 160~300 200~350 100~240
Pouch Length(mm) 425 350 425 425 350
MODEL
MODEL NR-10S24 NR-8SD11 NR-8SD14 NR-8SD16 NR-8ST20
STATIONS 10(Simplex) 8(Duplex) 8(Twin)
SPEED(RPM) 30~50 60~100 60~100 60~90 60~100
Depends on pouch and product condition
Gripping Size(mm) 100~240 80~110 100~140 130~160 100~200
Pouch Length(mm) 350 350 350 350 350

APPLICATION

VIDEO

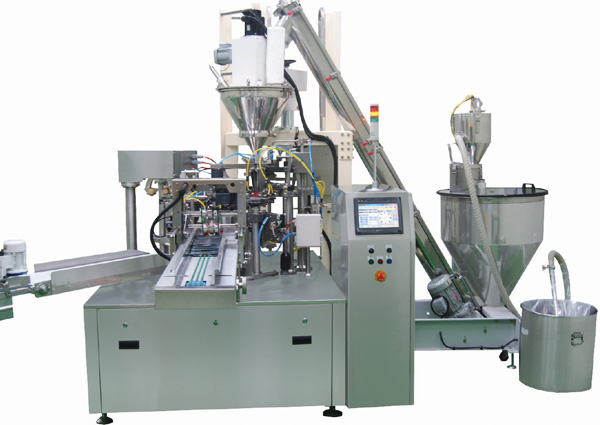

POWDER PACKAGING SYSTEM

Composition
  • 1. Rotary packer
  • 2. Auger filler
  • 3. Screw conveyor
Available product
  • Powder – Wheat flour, Sugar, Cream powder, Cocoa powder, Milk powder, Ground pepper, Ground coffee etc.
Production speed
  • 20 ~ 40 pouches/min
  • * Depends on product character

VIDEO

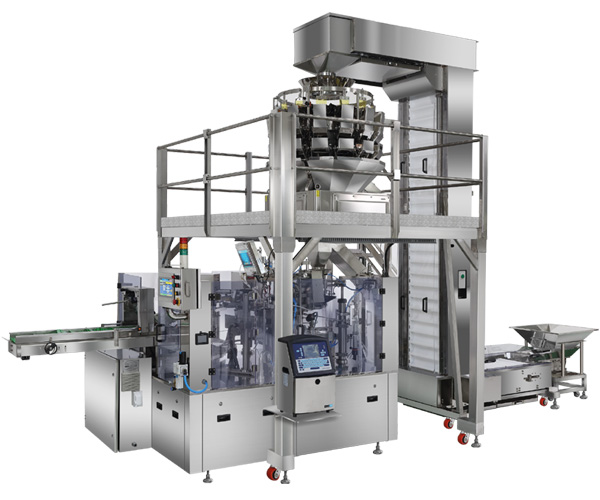

GRANULE PACKAGING SYSTEM

Composition
  • 1. Rotary packer
  • 2. Multihead weigher or Linear weigher
  • 3. Bucket conveyor
Available product
  • Granule – Seasoning, Sugar, Biscuit, Cereal, Fertilizer, Grain, Nuts, Coffee beans etc
Production speed
  • 20 ~ 50 pouches/min
  • * Depends on product character

VIDEO

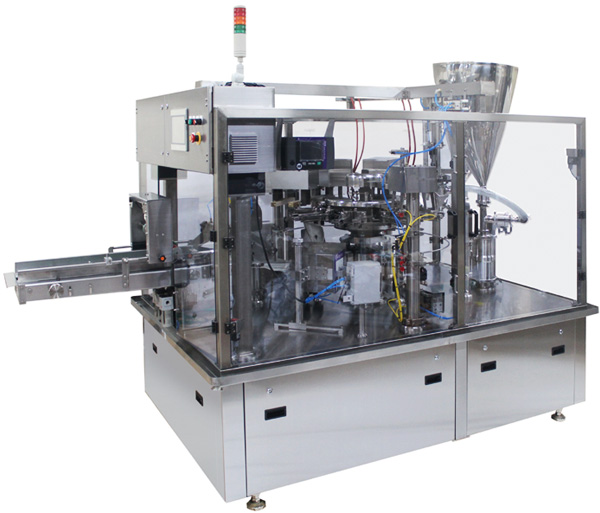

LIQUID or PASTE PACKAGING SYSTEM

Composition
  • 1. Rotary packer
  • 2. SERVO LIQUID(PASTE) FILLER
Available product
  • Paste – Sauce, Cosmetic, Shampoo, etc
Production speed
  • 20 ~ 40 pouches/min
  • * Depends on product character
